Product Overview

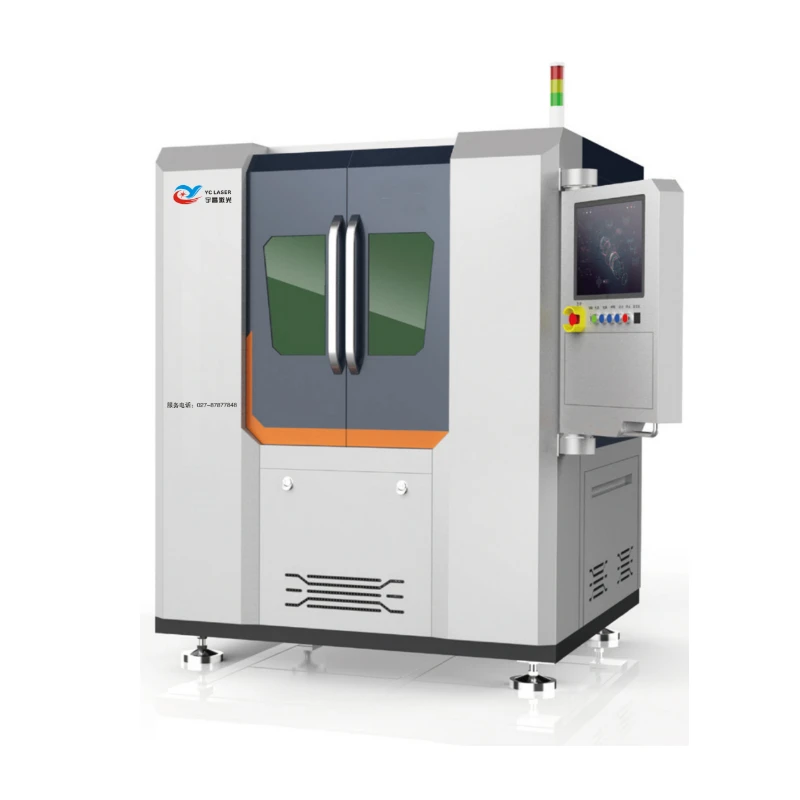

YCLASERZirconia Ceramic UV Laser Cutting Machine is specially designed for precision cutting of thin zirconia (ZrO₂) ceramic sheets ranging from 0.1 mm to 0.8 mm in thickness.
Equipped with a 355 nm nanosecond UV laser source, high-speed galvanometer scanning system, CCD vision positioning, and ultra-precision motion platform, the machine delivers excellent cutting quality with minimal thermal impact, making it ideal for manufacturing zirconia components with intricate contours, micro structures, and tight dimensional tolerances.
Key Features
Ultra-Fine UV Laser Processing
The 355 nm UV laser wavelength is highly suitable for precision ceramic processing, enabling stable machining of delicate zirconia structures while minimizing thermal damage.
High-Accuracy Motion System
The machine adopts a precision XY motion platform combined with a galvanometer scanning system, ensuring excellent positioning accuracy and repeatability.
●Positioning Accuracy: ±3 μm
●Repeatability: ±2 μm
●CCD Vision Positioning Accuracy: ±3 μm
Excellent Small-Feature Capability
●Minimum Focus Spot: 20 μm
●Minimum Line Width: 15 μm
Suitable for micro contours, narrow slots, and fine-feature zirconia components.
CCD Vision Alignment
Integrated CCD positioning system improves processing consistency and reduces manual alignment errors.
Flexible CAD-Based Manufacturing
Supports direct DXF file import and processing, allowing rapid switching between product designs without tooling costs.
Stable Long-Term Production
Equipped with industrial water cooling and temperature control system to ensure stable laser performance during continuous operation.
Technical Specifications
| Item | Specification |
| Laser Type | 355nm Nanosecond UV Laser |
| Laser Power | 20W |
| Pulse Frequency | 50–200 kHz |
| Maximum Processing Area | 300 × 300 mm |
| Single Processing Field | 50 × 50 mm |
| Z-Axis Travel | 50 mm |
| Minimum Focus Spot | 20 μm |
| Minimum Engraving Line Width | 15 μm |
| Positioning Accuracy | ±3 μm |
| Repeat Positioning Accuracy | ±2 μm |
| CCD Positioning Accuracy | ±3 μm |
| Maximum Scanning Speed | 7000 mm/s |
| Cooling System | Water Cooling |
| Temperature Control Range | 18–24°C |
| Temperature Stability | ≤0.2°C |
| Air Extraction System | 100 m³/h |
| Power Supply | 220V / 50Hz / 5KW |
| Supported File Format | DXF |
| Machine Dimensions | 1500 × 1400 × 1800 mm |
| Approximate Weight | 1500 kg |

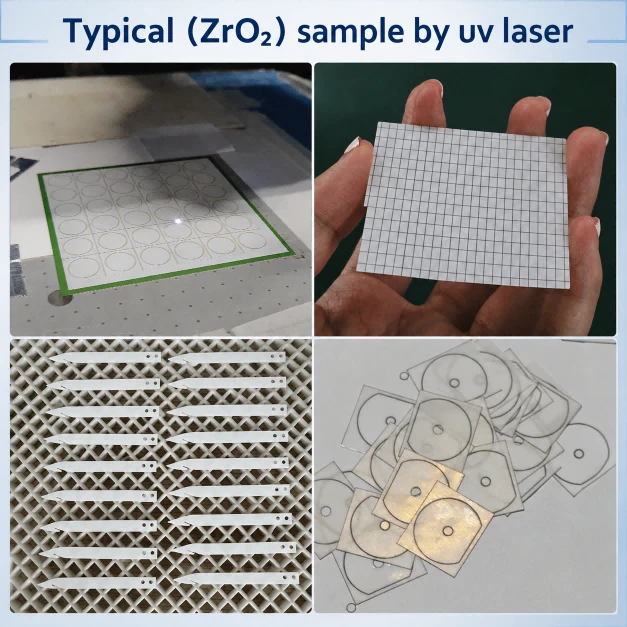

Typical Processing Capabilities
| Processing Item | Capability |
| Material | Zirconia Ceramic (ZrO₂) |
| Recommended Thickness | 0.1–0.8 mm |
| Cutting Type | Contour Cutting |
| Fine Pattern Cutting | Supported |
| Micro Structure Processing | Supported |
| Custom Shapes | Supported |
| Prototype Production | Supported |
| Small Batch Manufacturing | Supported |
Typical Applications
Medical Components
●Surgical ceramic parts
●Dental zirconia components
●Precision implant accessories
Electronic Ceramics
●Insulating ceramic sheets
●Sensor ceramic substrates
●Precision electronic components
Precision Industrial Parts
●Wear-resistant ceramic components
●Micro-mechanical parts
●Custom-shaped zirconia structures
Software Functions
The proprietary WHYC control software provides:
● Galvanometer and motion platform linkage control
● Laser parameter management
● CAD/DXF file import
● Large drawing processing support (1GB+ files)
● Batch processing capability
● Automatic path generation
● Process recipe storage
Main Components
| Subsystem | Component |
| Laser Source | YCLASER Customized LNS-355-20PRO UV Laser |
| Scanning System | High-Speed Digital Galvanometer |
| F-Theta Lens | 55 × 55 mm Telecentric Lens |
| Motion System | WHYC Precision XY Platform |
| Vision System | CCD Positioning Module |
| Chiller | Hanli HL-20-Z |
| Control System | YCLASER Customized Software & Electrical System |
Advantages of YCLASER UV Laser Cutting Machine
✔ Optimized for thin zirconia sheets (0.1–0.8 mm)
✔ High-precision contour cutting
✔ Small heat-affected zone
✔ Reduced edge chipping risk
✔ CCD vision positioning
✔ Fine-feature processing capability
✔ DXF direct import
✔ Suitable for prototype and production manufacturing
✔ Customized fixtures and automation options available
FAQ
Q: What zirconia thickness can this machine process?
A: This UV laser system is optimized for zirconia ceramic sheets ranging from 0.1 mm to 0.8 mm, providing stable cutting quality and high dimensional accuracy.
Q: Can the machine cut complex shapes and small holes?
A: Yes. The 20 μm laser spot and precision motion system enable processing of complex contours, narrow slots, and fine structural features.
Q: Is the machine suitable for mass production?
A: Yes. The combination of galvanometer scanning, CCD positioning, and motion platform linkage supports both prototype development and batch manufacturing.
Get a Free Sample Evaluation
Send us your zirconia drawings or samples, and our engineering team will evaluate the optimal laser process and provide sample testing support.
