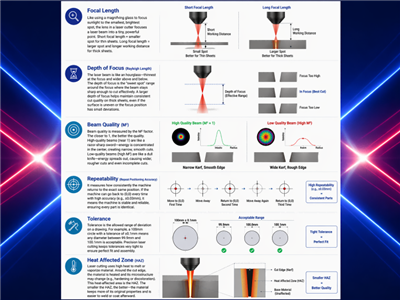

Common Technical Terms in Precision Laser Cutting
Laser cutting is often described as an "invisible light knife." But to make this knife cut accurately and smoothly, several technical parameters play a crucial role. Let's break down these terms with everyday examples, skipping complex physics formulas, so you can understand them intuitively.
Focal Length
Remember using a magnifying glass to focus sunlight and light a match as a kid? You had to move the magnifying glass until the light spot became smallest and brightest - that distance was the "focal length." In a laser cutter, the lens works like that magnifying glass. It focuses the wide laser beam into a tiny, high-energy spot. A shorter focal length produces a very small, precise spot, perfect for cutting thin materials. A longer focal length creates a slightly larger spot but increases the "working depth," ideal for cutting thicker materials evenly.
Depth of Focus
Photography fans know the concept of "depth of field." In laser cutting, depth of focus (also called Rayleigh length) refers to the range around the focal point where the laser remains sharp and effective. Picture the laser beam like an hourglass - it's thinnest at the center and widens above and below. Depth of focus is the length of the "sharp and effective" region. A larger depth of focus means the laser can maintain quality cuts even if the material surface is uneven or the focal point shifts slightly.
Beam Quality
Not all laser beams focus perfectly. Beam quality, measured by the M² factor, indicates how well the laser energy is concentrated. The closer the M² is to 1, the better the beam. Think of it like the sharpness of a knife. A high-quality beam is like a finely sharpened sword: energy is concentrated at the center, cuts are narrow and smooth. A low-quality beam spreads energy out like a dull knife, producing wider, rough edges, and may even fail to cut through materials.
Repeatability
Repeatability measures how consistently the machine can return to the same point. Imagine asking the cutter to mark a spot at (0,0). If you move the machine away and back, does it hit (0,0) again? High repeatability (e.g., ±0.03mm) means the machine is steady and precise, producing identical parts every time - crucial for batch production. Low repeatability leads to inconsistent parts.
Tolerance
Tolerance is the allowable deviation from a design specification. Perfect precision is unrealistic and unnecessary in manufacturing. For example, cutting a 100mm circle with a ±0.1mm tolerance means anything between 99.9mm and 100.1mm is acceptable. Precision laser cutting excels at controlling tolerance tightly, ensuring parts fit perfectly during assembly.
Heat-Affected Zone (HAZ)
Laser cutting melts or vaporizes material at high temperatures. Around the cut edge, a small area experiences heat, which may slightly change the material's properties (like hardening or discoloration). This is called the heat-affected zone. A smaller HAZ indicates a cleaner cut, minimal heat spread, and better retention of the material's original properties, making post-processing like welding or coating easier.
