Equipment Overview

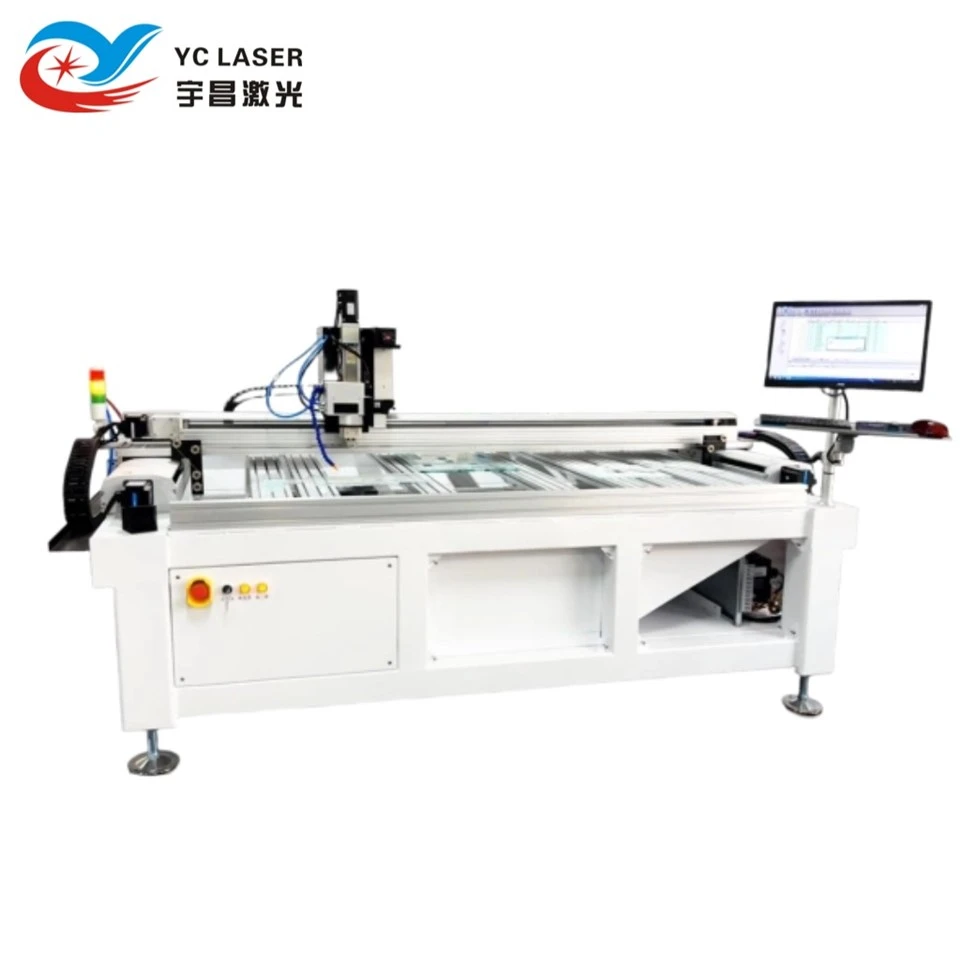

The YCBL-2070 precision laser glass cutting system is purpose-built for flat glass machining. Its production efficiency is multiple times higher than conventional glass cutting, enabling fully dry, dust-free processing to avoid secondary contamination from cutting fluid and dust, thus securing consistent finished workpiece quality.

Utilizing the high-precision and high-speed merits of laser technology, the machine is equipped with high-precision XY linear motors to deliver high-speed, ultra-precise work piece machining. In addition, flexible process configuration, outstanding operational stability and superior production yield allow the equipment to satisfy diversified manufacturing requirements.

This machine is suitable for precision processing of various brittle materials including optical glass, borosilicate glass, coated glass, ordinary glass, sapphire and quartz.

Equipment Dimensions

1	Voltage & power	AC220V±5%, Total Power(L+N+E)＜4 kW
2	Ambient Temperature	18-28℃
3	Relative Humidity	10%～70% RH, non-condensing, dust-free environment
4	Length(mm)	2700.0
5	Width(mm)	1400.0
6	Height(mm)	1800.0 (excluding signal tower lamp)
7	Weight	About 3,500 KG
8	Floor Load Capacity	>800kg/m²

Laser Source (Cutting) Module

The cutting module of this equipment uses an infrared picosecond pulsed laser, which delivers high machining precision and fast cutting speed to guarantee stable output.

1	Laser Type	Infrared Picosecond Pulsed Laser
2	Power	60 W
3	Wavelength	1064 nm
4	Frequency	0–100 kHz
5	Pulse Width	10 ps
6	Cooling Method	Water-cooled

Cutting Head Module

This equipment adopts a Bessel cutting head with small focal spot and long filamentation distance. Optimized for precision processing, it achieves high cutting speed and outstanding machining accuracy, and its production efficiency is several-fold higher than traditional CNC systems.

1	Optical Configuration	Bessel-type Laser Cutting Head
2	Quantity of Laser Head	1 pc
3	Focal Spot Diameter	<2 µm
4	Cutting Speed	0–250 mm/s
5	Cutting Thickness	Max Single-Pass Cut Depth: ≤6 mm
6	Edge Chipping	<10 µm
7	Cutting Precision	±25 µm
8	Effective Working Travel	2000 × 700 mm Single Platform

Motion Module

This machine adopts a 3-axis (X-Y-Z) motion platform. Its X and Y axes are driven by linear motors fixed on a marble base; such structure enables workpiece feeding with outstanding precision, high processing efficiency and long-running stability. The Z-axis is equipped with a servo motor for accurate focal position adjustment.

Industrial Control Software Module

The machine's control software is our self-developed proprietary laser cutting system. Benefiting from excellent hardware compatibility, it supports hardware configuration as well as setup of diverse machining parameters to match customers' custom processing demands. Featuring an intuitive, user-friendly GUI, the software comes with full functional packages for quick learning and easy operation.

1	Software Copyright	Independently Developed
2	Supported File Formats	DXF, DWG
3	Motion Controller	High-precision motion controller(built-in PS0 laser control function)
4	Host Computer	Industrial PC with Imported Taiwanese Motherboard
5	Display	LCD Industrial Monitor
6	Keyboard & Mouse	Wireless Keyboard and Mouse

Hardware System Modules

This equipment uses a marble base integrated with vacuum workpiece adsorption to dampen vibration and ensure precise workpiece positioning. All electrical and power supply components are sourced from well-known top manufacturers to guarantee the equipment's long-term stability and safety.

1	Motor and Optical Component Mounts	High-Precision Support Platform
2	Low-Voltage Electrical Components	Schneider Electric (France)
3	Switching Power Supplies	Mean Well (Taiwan)
4	Workpiece Vacuum Handling	Vacuum Pump
5	Motor and Optical Component Mounts	High-Precision Support Platform
6	Motor and Optical Component Mounts	Schneider Electric (France)
