Advanced ceramic substrates have become essential materials in semiconductor packaging, power electronics, RF devices, and high-performance electronic modules. Among them, alumina (Al₂O₃) and aluminum nitride (AlN) are the two most widely used engineering ceramics.
Although these materials may appear similar, they respond very differently during laser processing.
For manufacturers producing precision ceramic substrates, understanding these differences is critical when selecting laser equipment, developing processing parameters, and estimating production costs.
In general, AlN is more challenging to laser process than Al₂O₃ when high precision, low edge chipping, and high reliability are required. This article explains why from the perspectives of material properties, laser-material interaction, process stability, and manufacturing performance.
Material Properties: Why AlN Behaves Differently
The primary reason lies in the physical properties of the two materials.
| Property | Alumina (Al₂O₃) | Aluminum Nitride (AlN) | Impact on Laser Cutting |
| Thermal conductivity | Moderate | Very high | Heat dissipates much faster in AlN, making energy control more difficult. |
| Thermal expansion | Higher | Lower | Different thermal behavior affects stress distribution during processing. |
| Fracture toughness | Similar | Similar | Both materials are brittle and sensitive to thermal stress. |
| Melting/decomposition behavior | Primarily melts at extremely high temperatures | May partially decompose under localized high-temperature laser exposure | Surface quality and electrical performance require closer attention when processing AlN. |
Unlike alumina, AlN is designed to transfer heat efficiently. While this makes it an outstanding substrate for high-power electronics, it also makes precision laser machining significantly more demanding.
Aluminum Nitride (AlN) Impact on Laser Cutting
1. High Thermal Conductivity Creates a Narrower Process Window
The biggest challenge when cutting AlN is its extremely high thermal conductivity.
As laser energy enters the material, heat spreads rapidly away from the cutting zone instead of remaining concentrated near the kerf.
This creates two practical challenges:
More laser energy is often required to maintain stable material removal.
Small parameter changes can have a much greater effect on machining quality.
Compared with alumina, AlN generally offers a narrower process window. Optimizing laser power, scanning speed, pulse overlap, and cutting strategy therefore becomes considerably more important.
2. Surface Chemistry Is More Sensitive
Another important difference is the material's behavior at elevated temperatures.
During localized laser processing, AlN may undergo partial decomposition or oxidation depending on the processing atmosphere and thermal conditions. In some cases, metallic aluminum or reaction products may appear on the cut surface.
These surface changes can influence:
Electrical insulation
Surface cleanliness
Metallization quality
Subsequent brazing or coating processes
For semiconductor substrates, maintaining a clean, chemically stable cut edge is often just as important as achieving dimensional accuracy.
Carefully controlled UV laser processing can significantly reduce these effects.
3. Cracks and Edge Chipping Are More Difficult to Control
Both Al₂O₃ and AlN are brittle ceramics.
However, because AlN transfers heat much more efficiently, excessive laser energy can produce larger thermal gradients during machining if process parameters are not properly optimized.
As a result, manufacturers may observe:
Edge chipping
Corner cracking
Subsurface microcracks
Delayed crack propagation after processing
For high-reliability applications such as automotive power modules or semiconductor packages, these microscopic defects can reduce long-term reliability even if they are invisible to the naked eye.
This is one reason why layered cutting strategies are commonly preferred over aggressive high-energy cutting.
4. Precision Micro-Machining Is More Demanding
The differences become even more apparent during micro-machining.
Processes such as:
Micro holes
Narrow slots
Small-radius corners
Fine contour cutting
require extremely stable laser energy and accurate motion control.
For alumina substrates, these features can often be produced using well-established process parameters.
For AlN substrates, however, manufacturers typically spend considerably more time optimizing:
Layer thickness
Pulse overlap
Scanning strategy
Cooling conditions
Gas assistance
5. Equipment Requirements Are Higher
Processing AlN successfully is not only about choosing the correct laser wavelength.
Machine stability also becomes increasingly important.
For precision AlN cutting, manufacturers generally prefer systems equipped with:
Stable UV laser sources
High-quality beam delivery
Precision galvanometer scanners
Accurate motion platforms
Reliable temperature control
Effective assist-gas management
High-resolution vision alignment
A machine capable of processing alumina reliably may still require additional optimization before consistently producing high-quality AlN parts.

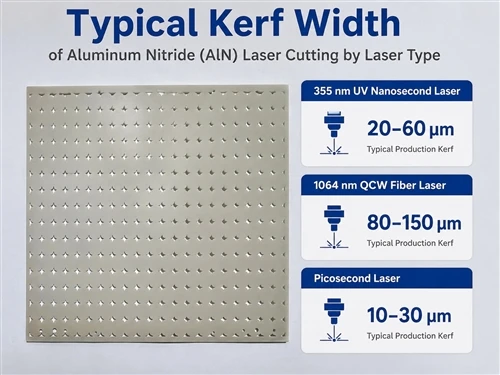

Which Laser Is Best for AlN?
For thin and medium-thickness AlN ceramic substrates used in semiconductor and electronic applications, 355 nm UV nanosecond lasers remain the most widely adopted solution.
Their advantages include:
Small heat-affected zones
Excellent dimensional accuracy
Low edge chipping
Stable contour cutting
Good compatibility with precision micro-features
Ultrafast picosecond and femtosecond lasers can further reduce thermal effects but are generally selected only for applications requiring extremely high precision or exceptional reliability.
AlN vs. Alumina: A Practical Comparison
| Comparison | Alumina (Al₂O₃) | Aluminum Nitride (AlN) |
| Process stability | Excellent | More sensitive to parameter variation |
| Edge quality | Easier to optimize | Requires tighter process control |
| Micro-hole machining | Mature process | More challenging |
| Heat management | Relatively forgiving | Requires careful optimization |
| Equipment requirements | Standard precision UV systems | Higher system stability preferred |
| Process development time | Shorter | Typically longer |
Although AlN is more difficult to machine, its superior thermal conductivity makes it indispensable for many advanced electronic applications.
The additional processing complexity is often justified by significantly improved thermal performance in the final product.
Conclusion
Both alumina and aluminum nitride are excellent ceramic materials, but they present different challenges during laser processing.
For most precision ceramic applications, alumina offers a wider processing window, more mature manufacturing experience, and easier process optimization.
Aluminum nitride, however, demands tighter control of laser parameters, machine stability, thermal management, and process development. Its higher thermal conductivity, greater sensitivity to localized heating, and stricter quality requirements make it one of the most challenging ceramic substrates for precision laser cutting.
Understanding these differences helps manufacturers select the right laser technology, optimize production efficiency, and achieve consistent product quality.
