Product Description

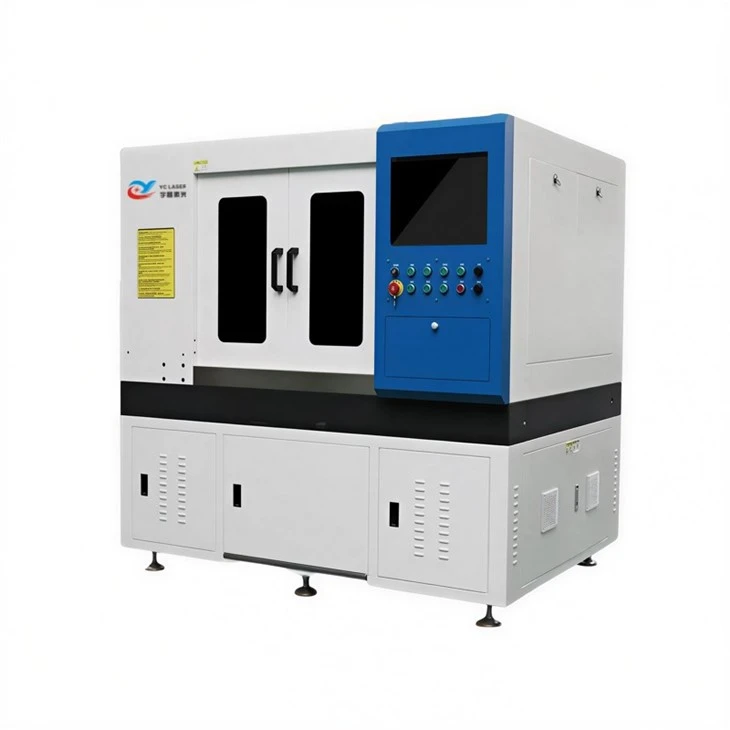

The motor core laser cutting machine is specifically designed for high-speed, high-precision, moldless laser cutting of various motor stator and rotor cores (silicon steel sheets/electrical steel), enabling rapid prototyping and flexible mass production of cores for everything from new energy drive motors to industrial servo motors.
Equipment Introduction
This equipment is equipped with a marble precision platform and a gantry-style enclosed structure, providing excellent rigidity, shock resistance, and high-speed stability. It also utilizes an imported magnetic levitation linear motor, a 0.5µm high-precision grating ruler, and a fully closed-loop bus CNC system, resulting in fast response, high precision, and low maintenance.
Advantages
No Mold Cost
No molds required, single-piece production possible, suitable for prototype development, small-batch customization, and multi-variety co-production.
Instant Changeover
Design changes take effect instantly; switching to new products requires only minutes of software adjustments, significantly shortening delivery cycles.
High Material Yield
Intelligent material routing algorithm achieves ≥80% material utilization, significantly better than traditional stamping.
Unlimited Geometry
Easily achieves complex geometric features such as trapezoidal grooves, magnetic bridges, and three-dimensional oil channels, breaking through the physical limitations of molds.
Quiet & Clean
No stamping noise or vibration, resulting in a quieter and safer working environment, meeting modern smart factory standards.
Technical data
|
Item |
Parameter |
|
Laser wavelength |
1060-1080nm |
|
Laser output power |
1000W-3000W(optional) |
|
Max.cutting range |
600*600mm(optional) |
|
Precision of repeated positioning of X/Y axis |
±5µm |
|
Processing speed |
0-500mm/s |
|
Maximum acceleration |
1.5G |
|
Worktable precision |
≦0.015mm |
|
Transmission mode |
Imported linear motor +0.5µm grating ruler |
|
Whole machine power (no fan) |
≦8KW |
|
Total weight of the whole machine |
About 1800KG |
|
External dimension(length*width*height) |
1800*1470*1890mm (For reference) |
Application Industries
1. New Energy Vehicle Drive Motors
- Stator Core: High-precision machining of complex rectangular and trapezoidal slots
- High-performance Rotor Core: Integrated machining of magnet slots, magnetic bridges, balance holes, and weight-reduction holes
2. Industrial Servo and Precision Micromotor
- Gear Machining: Minimum tooth width of 0.15mm, meeting the requirements of micromotors
- Rapid Prototyping: Complete the entire process from drawing to assembly verification within 48 hours.
