Q: What are the main preparation methods of Aluminum Nitride (AlN)?
A: There are three common industrial methods: direct nitridation of aluminum, carbothermal reduction nitridation, and vapor phase synthesis.
They differ in raw materials, process conditions, cost, and final material performance.
Q: What is the simplest method, direct nitridation?
A: It uses only aluminum powder and nitrogen gas.
The reaction happens at about 600–1000°C, where aluminum reacts directly with nitrogen to form AlN powder.
This method is simple and low-cost. It is suitable for large-scale production.
But it also has clear limits. The reaction is very fast and releases a lot of heat. Aluminum can melt and form lumps.
The powder is usually coarse and contains more oxygen impurities.
Because of this, the final ceramic has only average thermal conductivity.
It is mainly used for refractory materials and low-end thermal fillers, not for electronic substrates.
Q: Which process is used for high-end electronic applications?

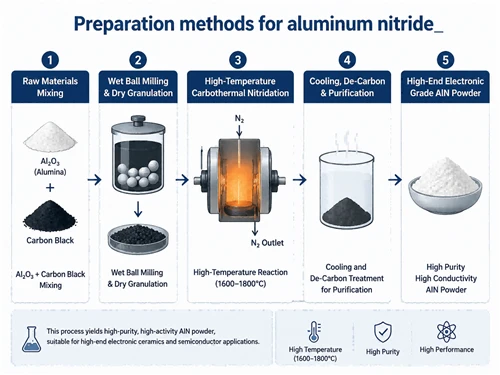

A: That would be carbothermal reduction nitridation.
It is the most widely used industrial method for high-performance AlN powder.
The raw materials are alumina (Al₂O₃) and carbon black.
The reaction takes place in nitrogen at 1600–1800°C, where alumina is reduced and converted into AlN.
The powder produced by this method has uniform particles, low impurities, and good sintering ability.
The final ceramic is dense and has high thermal conductivity.
It is widely used in:
IGBT power modules
5G RF devices
New energy vehicle electronics
The downside is the high temperature process. It consumes more energy and takes longer production time.
Q: What about vapor phase synthesis? It sounds different.
A: Yes, it is a high-end and specialized process.
It includes methods like halide ammonolysis and MOCVD.
In this process, aluminum-based precursors such as aluminum chloride or organic aluminum compounds react with ammonia in a gas phase environment.
This method produces very high purity AlN with nano-scale particles and no agglomeration.
It can also grow AlN single crystals and epitaxial thin films.
It is mainly used for:
Deep UV LEDs
High-end semiconductor epitaxy
Special optoelectronic devices
The limitation is cost. The equipment is expensive and output is very small, so it is not used for mass production.
Q: Can you summarize the differences simply?
A: Sure.
Direct nitridation = low cost, low-end industrial materials
Carbothermal reduction nitridation = mainstream method for high-performance thermal ceramics
Vapor phase synthesis = ultra-high purity materials for advanced optoelectronics and single crystals
Different AlN production methods lead to very different applications. But they all share one common challenge: AlN is hard and brittle, and difficult to machine.
