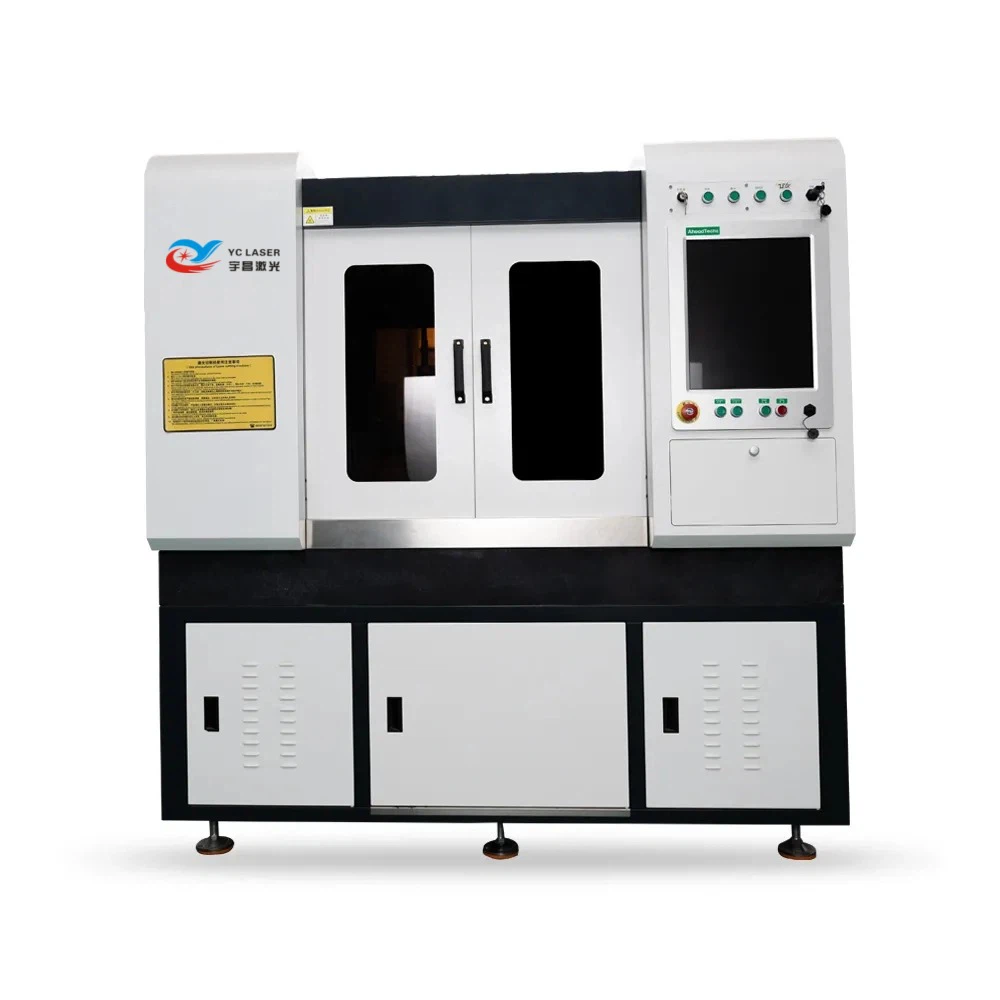

Product Description
This high-precision laser cutting machine are engineered for processing thin metals, hard and brittle materials, and precision components. With advanced fiber laser technology and a high-accuracy motion control system, they deliver excellent cutting quality, minimal heat-affected zones, and clean, smooth edge finishes.
They are widely used for precision cutting of PCB substrate materials, including copper plates, aluminum plates, and ceramic substrates. The machines are also suitable for high-speed cutting and micro-hole drilling of metals such as stainless steel, carbon steel, tungsten steel, aluminum alloys, titanium alloys, and copper, ensuring consistent accuracy and efficiency across demanding applications.
Features and Advantages
※ The exterior adopts a white and dark gray two-tone design with rounded corners, delivering a clean, premium, and safety-focused appearance. The heavy-duty base cabinet combined with adjustable casters ensures both stability and flexible mobility.
※ This model is equipped with a domestically advanced custom-designed fiber laser, featuring high beam quality, compact structure, and high photoelectric conversion efficiency. It requires minimal maintenance over long-term operation, with low running costs and reduced power consumption.
※ It features a marble precision platform and a gantry-type enclosed structure, offering excellent rigidity, vibration resistance, and stable performance during high-speed operation.
※ A magnetic levitation linear motor system is adopted, eliminating mechanical backlash and wear associated with traditional screw and rack transmissions. This enables contactless, frictionless high-speed motion, reducing the need for regular calibration and component replacement, and significantly lowering maintenance costs.
※ Equipped with a 0.5μm ultra-high-resolution imported optical grating scale, it provides real-time full-stroke position feedback. Positioning accuracy and repeatability are controlled at the micron level, ensuring consistent dimensions for every cut and drilled hole, and meeting strict high-precision machining requirements.
※ Integrated with an industrial-grade fully closed-loop bus CNC system, it can precisely adapt to different materials and processing needs. With built-in fault self-diagnosis, status monitoring, and remote operation and maintenance functions, it enhances automation, reliability, and production efficiency, providing a stable control core for complex, high-precision laser processing.
Product Specifications
Our equipment offers a variety of power and configuration options to meet the processing needs of different thicknesses and materials.
|
Specifications |
Product picture |
Laser Power |
Wavelength |
Cutting Area |
Cutting Thickness |
Equipment Dimensions (Estimated) |
|
YC-GJMD |
|
150w-300W optional |
1060-1080nm |
300x300mm |
0.2-1.5mm |
1050x1300x1850mm |
|
YC-GJM01 |
|
1500w-3000w |
1060-1080nm |
600x600mm,800*800,1000*1000 |
0.2-5mm |
1800x1470x1890mm |
|
YC-GJMPCB |
|
1000w Customization |
1060-1080nm |
600x600mm |
0.2-2mm |
1800x1470x1890mm |
|
YC-UVP |
|
10-30w optional |
355nm |
400x400mm |
≤0.2mm |
1500x1600x1800mm |
Technical parameters
|
Item |
Parameter |
|
Laser wavelength |
1060-1080nm |
|
Laser output power |
1500W-3000W(optional) |
|
Max.cutting range |
600*600mm |
|
Precision of repeated positioning of X/Y axis |
±5um |
|
Processing speed |
0-500mm/s |
|
Maximum acceleration |
1.5G |
|
CCD visual positioning accuracy |
±5mm |
|
Processing thickness: ≤1mm Worktable precision |
≦0.015mm |
|
Transmission mode |
Imported linear motor +0.5um grating ruler |
|
Whole machine power (no fan) |
≦5KW |
|
Total weight of the whole machine |
About 1800KG |
|
External dimension(length*width*height) |
1800*1470*1890mm(For reference) |
Application Areas
3C Electronics
Micro-hole processing for thin metal structural parts, light-transmitting holes in wearable devices, and LED light holes.

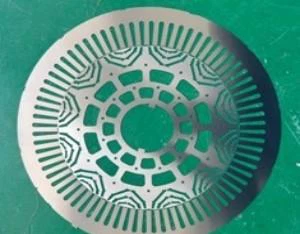

New Energy Vehicle Motors
High-speed, high-precision cutting of silicon steel sheets for motor stators and rotors.

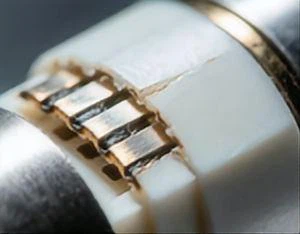

E-cigarette Components
Precision cutting of metal and ceramic heating elements.
Automotive Tire Molds
Cutting of small steel sheets for tire tread pattern molds.
3C Industry Components (Atomizing Sheets)
Micro-hole processing for atomizing sheets used in humidifiers and atomizers.

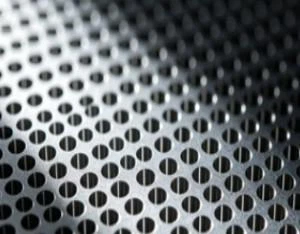

Mechanical Filtration
Micro-hole drilling for metal filter screens.
Military Applications
Micro-hole processing for aero-engine turbine blade cooling holes, artillery silencers, and related components.

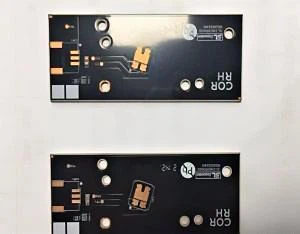

PCB Industry
Precision cutting of copper-based, aluminum-based, and ceramic substrates, especially for reinforcement plates in FPC
General Precision Manufacturing
High-precision cutting and micro-hole processing of thin metal sheets and alloy materials across various industries.
Packaging, Logistics, and Transportation
All equipment is packed in export-standard, fumigation-free wooden crates, with internal shockproof and moisture-resistant protection. Key precision components such as the laser source, optical parts, and motion system are individually fixed and cushioned to prevent movement and damage during transit.
The outer packaging is clearly labeled with international handling marks (Fragile, This Side Up, Keep Dry, etc.) to ensure proper handling throughout the logistics process. Each unit is securely reinforced for stacking and vibration resistance, making it suitable for long-distance transportation by sea, air, or land.
We provide global logistics support with flexible shipping options, including sea freight, air freight, and land transportation, and support multiple trade terms such as CIF, FOB, EXW, and DDP. Customized logistics solutions are available to meet specific delivery requirements.
FAQ
Q1: What materials can it process?
A: A wide range of materials, including metals, advanced ceramics, sapphire, diamond composites, and various polymer materials.
Q2: Can it achieve micron-level precision?
A: Yes, depending on the machine configuration and specific application requirements.
Q3: Do you offer customization services?
A: Yes, we provide flexible customization based on your needs, including:
Laser source selection
Laser power upgrades
Customized larger working areas
Automation integration
Dual-platform, dual-optical-path systems
Customized fixtures and vacuum platforms
Application-specific software customization
Q4: Do you provide sample testing?
A: Yes, we offer free sample testing. Customers can send materials to our testing center, where engineers will develop a suitable processing plan and provide a detailed cutting report. Real-time video viewing of the testing process is also available to ensure results meet expectations.
Q5: How much does the equipment cost?
A: Pricing depends on configuration and customization requirements, typically ranging from 200,000 to 500,000 RMB($30,000-$50,000). Please contact us for a detailed quotation and tailored solution.
Q6: Do you provide manuals and training?
A: Yes, an electronic user manual is provided after shipment for easy access and translation. Optional on-site installation is available, along with free training covering machine operation, software use, and routine maintenance.
Q7: What about warranty and after-sales service?
A: We provide a 1-year warranty for the entire machine, long-term spare parts supply, and lifetime technical support. Remote support is available 24/7, with optional on-site service for key customers to ensure stable production.
Q8: Do you have distributors in other countries?
A: We are actively recruiting global distributors, offering technical support and regional partnership opportunities. Please contact us for more details.
Q9: What payment methods are supported?
A: We offer flexible and secure payment options, including installment plans. Typically, 50% is paid upfront, the main balance before shipment or after acceptance, and 5% retained as a warranty deposit (payable after the warranty period if no issues arise). Supported methods include bank transfer, checks, drafts, and partial payments via platforms such as Alipay and WeChat.
