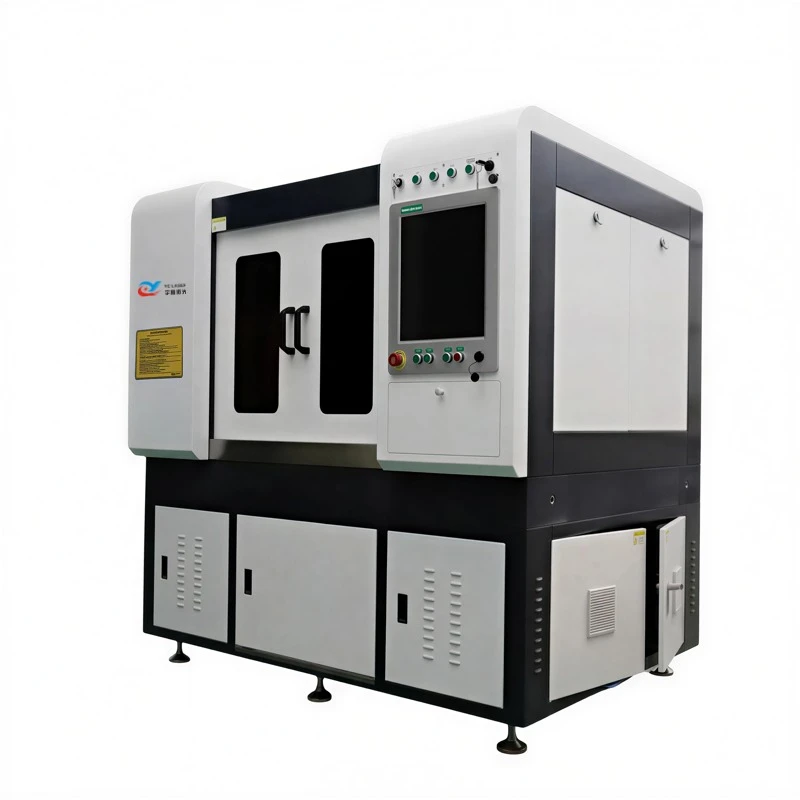

The Alumina Ceramic Substrate Laser Cutting Machine is a precision laser processing system specially designed for Al₂O₃ ceramic substrates. Equipped with a customized precision laser system, high-accuracy vision positioning, and intelligent motion control technology, it eliminates the disadvantages of traditional mechanical machining.
The machine supports integrated processing of cutting, scribing, drilling, scribing, and profile cutting for alumina ceramic substrates ranging from 0.2 mm to 5 mm thickness, achieving completely non-contact processing with no mechanical stress, no edge chipping, and excellent cutting quality. It is ideal for both prototype development and mass production of high-precision electronic ceramic substrates, providing an efficient and reliable solution for electronic packaging and power semiconductor manufacturing.
Why Choose Laser Cutting?
Compared with traditional mechanical cutting, laser cutting offers significant advantages.
| Comparison | Laser Cutting | Traditional Mechanical Cutting |
| Processing Method | Non-contact laser processing with no mechanical stress | Contact cutting with mechanical stress |
| Cutting Quality | No edge chipping, minimal micro-cracks, high yield | Edge chipping and micro-cracks are common |
| Precision | Narrow kerf (20–50 μm), small heat affected zone | Wider kerf, accuracy affected by tool wear |
| Flexibility | CAD file import, no tool replacement required | Frequent tool replacement, less suitable for multiple product types |
| Efficiency | High cutting speed and continuous operation | Grinding wheel replacement reduces productivity |
Products Feature
1.High-Rigidity Precision Motion Platform
· Granite machine base withGantry integrated enclosed structure
· Excellent rigidity, vibration resistance, and high-speed stability
· ImportedLinear motor drive with 0.5 μm grating scale
· Fully closed-loop CNC control system
· Fast response, high precision, and low maintenance
· X/Y positioning accuracy up to ±0.015 mm
· Repeat positioning accuracy of ±0.005 mm, ensuring long-term machining stability
2.High-Performance Laser & Optical System
The machine adopts a high-quality QCW fiber laser featuring excellent beam quality and a smaller focal spot, enabling narrower kerf widths and higher machining precision.
Considering the relatively low infrared absorption of alumina ceramics, optional auxiliary processing technologies (such as surface coating) are available to ensure stable and efficient cutting.
For higher-end applications, the machine can also be equipped with:
· Nanosecond UV laser
· Picosecond laser
These configurations are suitable for ultra-thin ceramic blind cutting, high aspect-ratio cutting, and ultra-low thermal damage applications.
3.Intelligent Vision Positioning System
A high-precision CCD vision positioning system is especially suitable for printed circuit or metallized ceramic substrates.
It provides automatic alignment with excellent positioning accuracy to ensure precise machining.
4.Self-Developed Laser Cutting Software
· Supports DXF and multiple CAD file formats
· Automatic cutting path optimization
· User-friendly operation
· Custom software functions available according to customer requirements
5.Clean & Environmentally Friendly Design
The fully enclosed working chamber combined with an efficient dust extraction system keeps the working environment clean.
During laser processing, the material is directly vaporized, greatly reducing dust contamination.
Technical Specifications
| Item | Specification |
| Laser Wavelength | 1060–1080 nm |
| Laser Power | 1000 W (Customizable) |
| Max. Cutting Area | 600 ×600 mm |
| Cutting Thickness | 0.2–10 mm (depending on material) |
| X/Y Repeat Positioning Accuracy | ±5 μm |
| Processing Speed | 0–3000 mm/min |
| Maximum Travel Speed | 60 m/min |
| Maximum Acceleration | 1.2 G |
| Worktable Accuracy | ≤0.015 mm |
| Transmission System | Imported Linear Motor + 0.5 μm Grating Scale |
| Machine Power (excluding exhaust fan) | ≤7 kW |
| Machine Weight | Approx. 1800 kg |
| Machine Dimensions (L × W × H) | 1800 × 1470 × 1890 mm |
Specifications are subject to the actual machine.

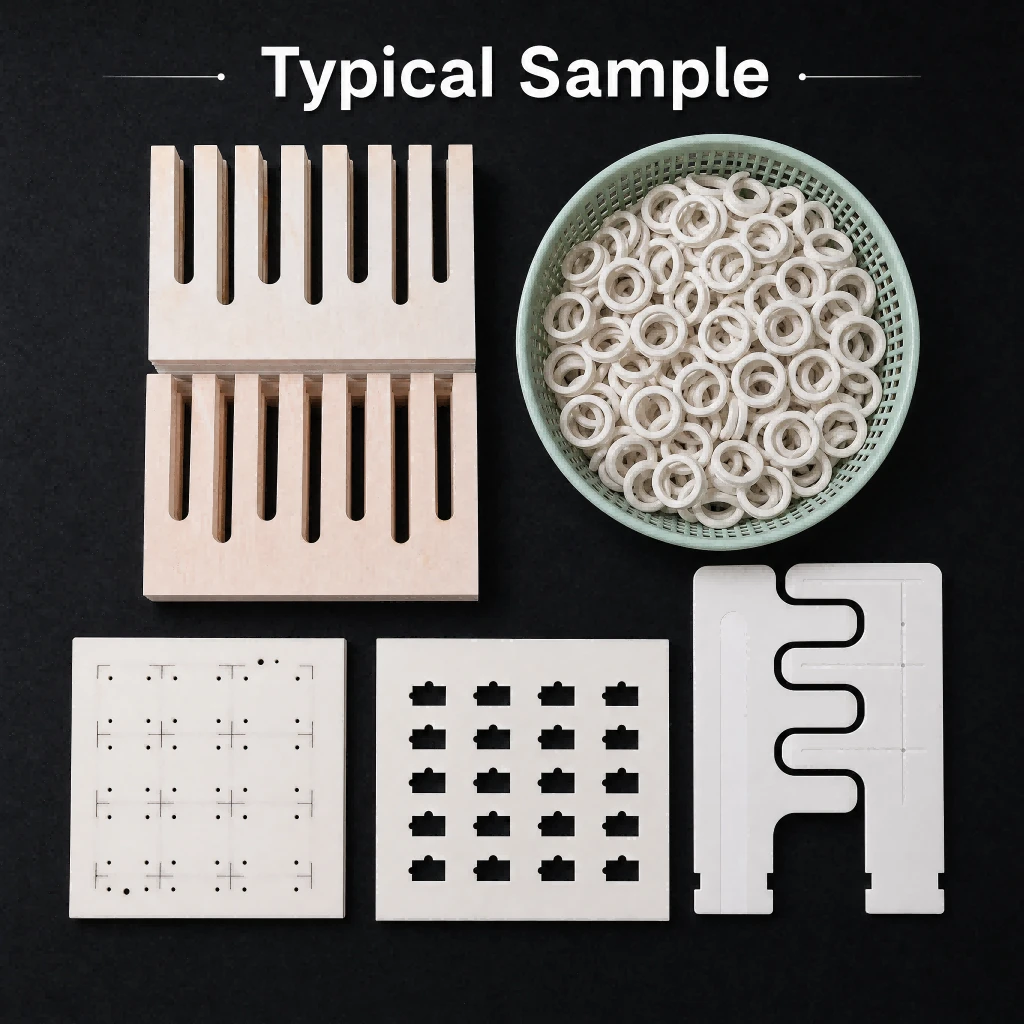

Typical Applications
- LED Industry – Precision cutting, scribing, and drilling of ceramic substrates
- Power Semiconductors – Processing ceramic substrates for IGBT and MOSFET modules
- RF & Microwave Devices – Cutting and shaping high-frequency circuit substrates
- Consumer Electronics – Precision machining of ceramic phone back covers and decorative ceramic components
- Hybrid Integrated Circuits – Precision cutting of ceramic circuit carrier substrates
How to Choose the Right Laser Solution?
Choosing the appropriate laser source depends on your processing requirements.
| Laser Type | Best Suited For / Recommended | Key Advantages & Processing Quality |
| QCW Fiber Laser | • High cutting precision • Narrow kerf width • High processing efficiency | With optimized processing methods (such as absorbent coating), QCW fiber lasers provide excellent precision and productivity for alumina ceramic substrates.
|
| Nanosecond UV Laser | • Ultra-thin ceramic substrates • High aspect-ratio blind cutting • DPC & copper-clad ceramics | The shorter wavelength provides higher absorption and superior machining quality.
|
| Infrared Picosecond Laser | • Minimal thermal damage • Improved bending strength and thermal shock resistance
| Its ultra-short pulse "cold processing" technology significantly improves edge quality. |
Why Choose YCLASER?
The Alumina Ceramic Substrate Laser Cutting Machine provides a precision, efficient, flexible, and environmentally friendly solution for modern electronic ceramic manufacturing.
YCLASER offers complete laser processing solutions, including process development, equipment customization, and free sample testing.
Contact us today to discuss your application or request a free sample test.
